Energy saving condenser for the air conditioner save electricity in offices, factories & buildings.
Energy conserved leads to green earth

  • HOME
  • Supercon System

スパコンのシステム

「もっと快適」、「もっと節電」 そして 「環境への貢献」まで、スパコンが実現します。

既存の空調機の室外機に取り付けるだけで、冷凍サイクルの効率UP!

About 40% or more of the energy used in offices is said to be air-conditioning related. To Enhance the efficiency of air conditioning and improve the original performance, & enabling more effective energy saving, we propose a new energy-saving system "supercon" which raises the performance of the compressor, reduces energy consumption, with simple installation & no maintenance.

[Acquired patents] 3492420/3492422/4208982

Basic system of supercon help's power saving with more efficiency

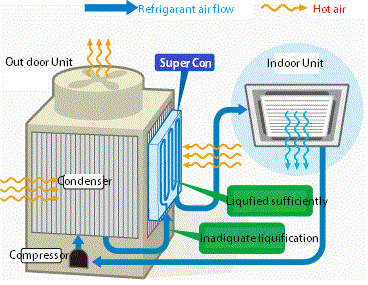

冷房運転

冷媒の液化促進で効率UP!

The refrigerant can not be sufficiently condensed (cooled) by the existing condenser hence performance is degraded alone. With supercon, it helps sufficient liquefaction of refrigerant.

冷房運転

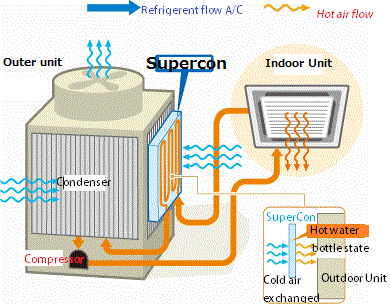

The supercon warms up with a refrigerant returning from the indoor unit (in a warm condition of about 40 ° C) and becomes in a hot water bottle state. Suppresses frost on the outdoor unit by heat exchanging the cold outside air which sucks, and makes the heating efficiency UP.

  • スパコン
  • スパコン

Product Specifications

スパコン
Product name Supercon
Dimension H × W × D (mm) 590 × 400 × 25
Weight (kg) 2.4
Material tube Aluminum
fin Aluminum
Painting Ceramic heat radiation paint
Refrigerant inlet / outlet (mm) 12.7φ
